Windcatcher Ventilation: A Comprehensive Guide to Passive Ventilation

Windcatcher ventilation is a simple and effective way to improve indoor air quality and reduce energy costs. By harnessing the power of wind, you can create a healthier and more comfortable living space.

The basic principle of windcatcher ventilation is to capture and utilize natural breezes to ventilate buildings. This is achieved through the use of a specialized roof design that allows wind to enter and exit the building.

Windcatcher ventilation can be an attractive alternative to traditional heating and cooling systems, especially in mild climates. In fact, a well-designed windcatcher system can reduce energy consumption by up to 50%.

To get the most out of a windcatcher system, it's essential to consider factors such as building orientation, roof pitch, and local wind patterns. By carefully designing your windcatcher system, you can maximize its effectiveness and enjoy the benefits of natural ventilation.

For another approach, see: Solar Powered Roof Ventilation Fans

Windcatchers have a rich history that spans thousands of years, dating back to ancient Egypt and Persia. The earliest recorded use of windcatchers was in 1300 BCE in Egypt, where simple shafts were used to direct cooler air into buildings.

These ancient structures were not just functional, but also a statement of sophistication and understanding of the natural world. In fact, the Persians took windcatcher design to the next level, building elaborate tower structures for cooling and ventilation between 500 BCE and 400 CE.

Here's a brief overview of windcatcher history in different civilizations:

Windcatchers became a common sight in regions like the Middle East and North Africa, showcasing the ingenuity and resourcefulness of ancient architects.

The ancient whisper of cool breezes is a fascinating topic. In ancient Egypt, windcatchers were used as early as 1300 BCE, with simple shafts in buildings designed to direct cooler air in.

These early windcatchers were a testament to the ingenuity of ancient architects, who understood the importance of harnessing natural forces to create a comfortable living space. The Egyptians' solution was straightforward yet effective.

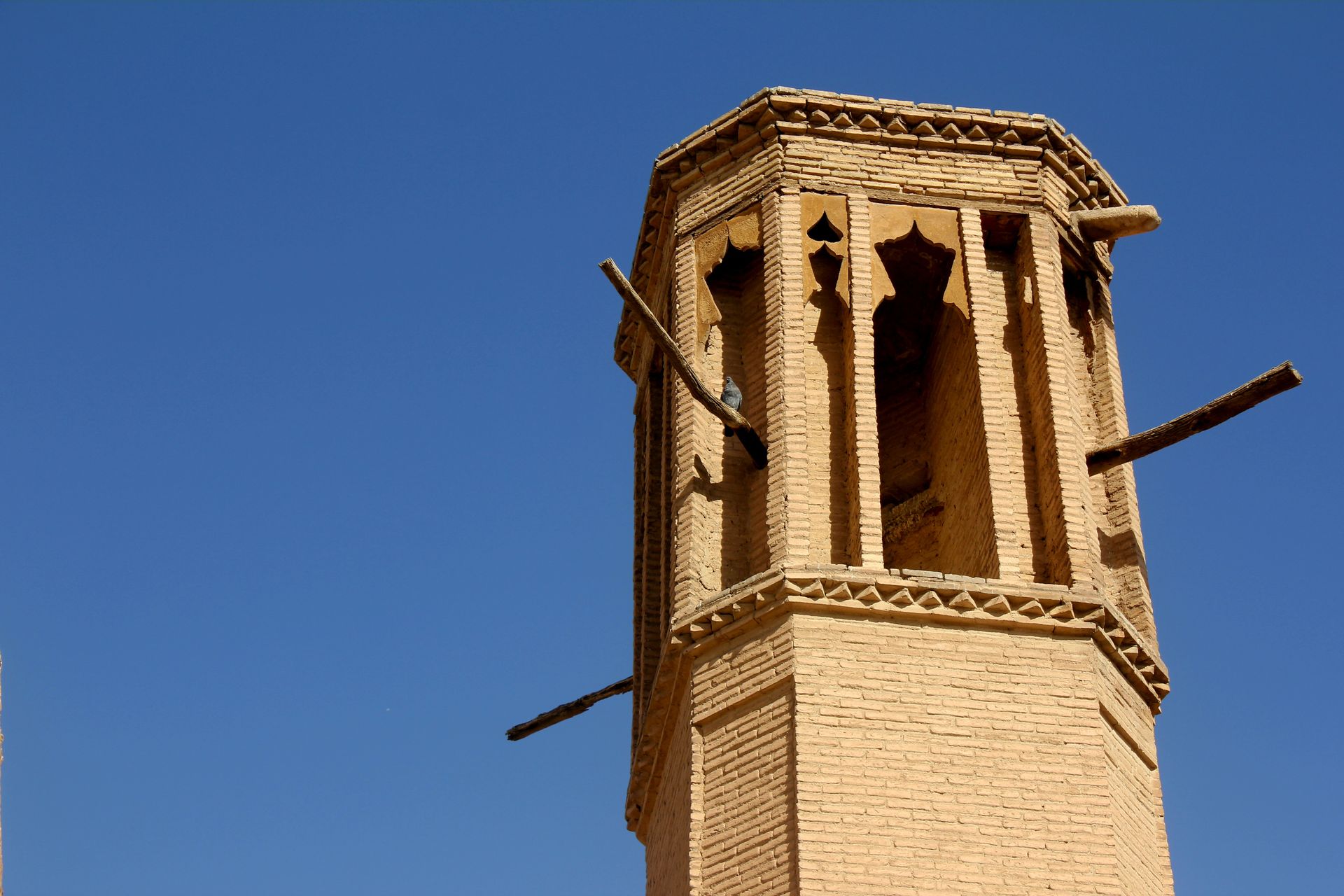

Windcatchers also originated in Persia, where they were used from 500 BCE to 400 CE. Elaborate tower structures were built for cooling and ventilation, showcasing the sophistication of these ancient engineers.

Recommended read: What Is Ventilating Air Used for on a Combustion Heater

The Egyptians and Persians were not the only ones to adopt windcatchers. In regions like the Middle East and North Africa, these architectural marvels became a common sight, dotting the skyline with their distinctive structures.

Here's a brief comparison of the windcatcher designs used in ancient Egypt and Persia:

Windcatchers have had a profound impact on the cultures they touched, symbolizing a harmony between human habitation and the environment.

Their influence can be seen in the architectural practices of regions far beyond their origins. Trade routes expanded, and with them, the ideas behind windcatchers spread.

As trade routes expanded, windcatcher ideas influenced architectural practices in distant lands. This exchange of ideas is a testament to the power of cultural diffusion.

The cultural significance of windcatchers is a reminder that human habitation and the environment are interconnected. This principle is increasingly relevant in today's world.

Windcatcher ventilation is a masterclass in natural ventilation. It operates on basic principles of physics, specifically wind pressure and thermal buoyancy.

Wind pressure is created when wind blows across the top of a windcatcher, creating a lower pressure area inside the tower. This sucks the hot indoor air out and allows cooler outside air to replace it.

Thermal buoyancy is also at play, as hot air inside a building rises and escapes through the windcatcher. This causes cooler air from outside or underground passageways to be drawn in, ensuring a constant supply of fresh air.

This cycle of air movement not only cools but also makes indoor spaces more comfortable and healthier.

Here's a breakdown of the two key principles at work:

Windcatchers are incredibly durable structures that can withstand the elements. Typically made from materials like mud-brick, clay, or stone, they're built to last.

These materials also happen to be excellent in thermal mass, helping to cool the air as it passes through. This unique property makes windcatchers even more effective at ventilation.

Windcatchers are built to last, and their construction showcases the ingenuity of ancient builders.

Materials like mud-brick, clay, or stone were used to make windcatchers, providing durability and excellent thermal mass.

These materials help cool the air as it passes through, making windcatchers a clever solution for ancient climates.

The use of mud-brick, clay, or stone also speaks to the resourcefulness of ancient builders, who had to work with what was available to them.

Windcatchers are incredibly adaptable, and their design can vary significantly depending on the climate, location, and specific needs of a building. In areas with consistent wind patterns, directional windcatchers are often used, targeting the prevailing winds for efficient ventilation.

Directional windcatchers are ideal for regions with consistent wind patterns, as the entire cross-sectional area functions as an inlet for airflow. However, in areas with fluctuating wind directions, bidirectional and multidirectional windcatchers can capture wind from multiple directions, maximizing ventilation.

The design of the windcatcher's inlet opening is crucial for its performance. The area of the inlet opening is typically equivalent to the cross-sectional area of the shaft, which is around 3% of the floor area of the ventilated space. However, in traditional windcatchers found in Sanliurfa, Turkey, the inlet size is narrower than the shaft cross-section.

The shape of the inlet opening can also significantly affect airflow patterns, rates, and velocity. A study found that the geometry of the inlet significantly affects airflow, and increasing the length-to-width ratio of rectangular openings improves the ventilation flow rate.

Here's a breakdown of the different types of windcatcher designs:

In areas with fluctuating wind directions, two- or multi-sided windcatchers can enhance cross-ventilation. Four-sided windcatchers offer maximum flexibility and consistent performance across varied conditions, though they are more costly and complex to construct.

Windcatchers are being repurposed in modern architecture to improve ventilation and reduce the need for air conditioning. The ZEF Climatic Building in Qatar uses computer-optimized windcatchers to cool its interiors.

In extreme climates like the Gulf, windcatchers can make a significant difference in maintaining a comfortable temperature. This building in Qatar is a great example of how windcatchers can be adapted to work in even the most challenging conditions.

Masdar City in the UAE has integrated windcatchers into its design, showcasing how ancient designs can fuel future cities.

The Renaissance in Modern Architecture is a fascinating phenomenon. As we move forward in our quest for sustainability, we're seeing a resurgence of interest in ancient technologies like windcatchers.

Today's architects are weaving this millennia-old technology into the fabric of contemporary design, proving that old wisdom can meet new world challenges head-on. The Echoes of Windcatchers in Modern Design section highlights how these ancient marvels are inspiring modern architecture.

Windcatchers are being adopted in diverse climates around the world, demonstrating their versatility as a solution for sustainable architecture. From hot, arid regions to temperate climates, windcatchers are being customized to enhance their performance and efficiency.

Here are some examples of how windcatchers are being adapted to suit local conditions:

The ZEF Climatic Building in Qatar is a prime example of the modern adaptation of windcatchers. This architectural marvel uses computer-optimized windcatchers to cool its interiors, even in the extreme Gulf climate.

Masdar City, UAE, is a pioneering example of sustainable urban development, where windcatchers play a crucial role in its quest to become the world's most sustainable eco-city. These structures are central to the city's cooling strategy, showcasing how ancient designs can fuel future cities.

In Masdar City, windcatchers are strategically placed to facilitate cross-ventilation, pulling cooler air from shaded areas or water bodies. This natural cooling technique helps reduce the urban heat island effect, making the city a more livable place.

The city's design incorporates green roofs and vertical gardens, which, when combined with windcatchers, can significantly reduce surrounding temperatures. This innovative approach to urban planning makes Masdar City a model for sustainable cities worldwide.

Here are some key benefits of windcatcher integration in urban design:

Windcatcher ventilation is a game-changer for buildings, offering numerous benefits that extend beyond just cooling. By harnessing natural wind and thermal currents, windcatchers minimize reliance on fossil fuels, making them a more sustainable choice.

Windcatchers contribute to sustainability not just through cooling but also by promoting biodiversity and improving air quality in urban areas. Green roofs or gardens associated with windcatcher systems can support a variety of plant and insect life, contributing to urban biodiversity.

They also help in diluting and dispersing pollutants, improving urban air quality. This is especially important in urban areas where air quality can be a major concern.

Windcatcher systems offer a compelling alternative to energy-intensive air conditioning, reducing electricity use and promoting environmental stewardship. By harnessing natural wind and thermal currents, windcatchers minimize reliance on fossil fuels.

The benefits of windcatcher ventilation don't stop there. They also offer significant reductions in operational costs by slashing energy consumption associated with cooling. This economic benefit is not just immediate but accumulates over the lifespan of a building, offering long-term savings.

Explore further: Energy Recovery Ventilation Systems Cost

While the initial investment in windcatcher systems might be higher than traditional HVAC systems, the long-term savings on energy bills can be substantial. Typically, windcatchers require less maintenance than mechanical cooling systems, further reducing operational costs.

Here are some key benefits of windcatcher ventilation:

Windcatchers also play a significant role in achieving green building certifications like LEED and BREEAM. By enhancing natural ventilation and reducing energy consumption, they tick key boxes in sustainability criteria.

Windcatcher ventilation is getting a boost from innovative technologies. Sensors and automated systems allow for real-time adjustments, optimizing indoor air quality and temperature without human intervention.

Automated vent control is a key feature of modern windcatchers. Sensors detect changes in wind direction and temperature, adjusting vents to capture optimal breezes.

Solar-powered fans are also being integrated into windcatchers to enhance airflow during still days. This ensures constant ventilation and makes windcatchers a reliable option for natural ventilation.

Advances in materials science could lead to lighter, more efficient windcatchers that are easier to install and maintain. This could make windcatchers more accessible to a wider range of buildings and homes.

Computational fluid dynamics (CFD) and other simulation tools are being used to optimize the design of windcatchers for specific environmental conditions. This will help windcatchers perform better in different climates and locations.

A critical review of windcatcher ventilation highlights the importance of considering various factors before commercial rollout. These include cost considerations, aesthetic preferences, and misconceptions or concerns regarding the effectiveness of windcatchers.

Here are some key factors to consider when evaluating windcatcher technology:

Design guidelines for windcatchers have been established through research, which can be categorized into five approaches: specific shape or location, absolute value, aspect ratio, relative value to other components, and relative value to room characteristic. These approaches provide a framework for designing windcatchers that are tailored to specific building characteristics.

The most consistent research findings recommend a rectangular cross-section and curved top surface for the shaft, which simplifies and standardizes windcatcher design. Researchers are encouraged to adopt the approach that focuses on producing guidelines tailored to the characteristics of the ventilated space, unless absolute values or relative values in relation to other components are proven to be universally applicable.

Studies have shown that windcatchers can be designed to optimize ventilation performance, with specific design parameters such as the optimal projection height being approximately 6 m above the building roof.

Windcatchers are experiencing a modern renaissance in architecture, and designers are taking note of their benefits in sustainable design.

Recent studies have shown that repurposed historical features like mosque minarets can be transformed into efficient solar chimneys, enhancing passive ventilation performance in hot and arid environments.

The ZEF Climatic Building in Qatar is a testament to the modern adaptation of windcatchers, using computer-optimized windcatchers to cool its interiors even in extreme climates.

Designers can classify windcatcher components into five categories: specific shape or location, absolute value, aspect ratio, relative value to other components, and relative value to room characteristic.

The most recommended shape for windcatcher components is a rectangular cross-section with a curved top surface, which simplifies and standardizes windcatcher design.

Research findings suggest that the optimal projection height of windcatchers should be approximately 6 meters above the building roof.

Designers should focus on producing guidelines tailored to the characteristics of the ventilated space, as emphasized in the 'E-type' approach, which sets values based on the room's characteristics.

The inlet opening size should match the cross-sectional area of the shaft, and the inlet opening area should be approximately 3% of the floor area of the room.

Explore further: Windcatcher Yazd

As we move forward with designing user-centered interfaces, it's essential to consider the limitations of current design guidelines. Many existing guidelines are based on outdated research and don't account for the complexities of modern user behavior.

The current design landscape is shaped by the 80/20 rule, where 80% of users follow 20% of the design patterns. This highlights the need for more nuanced guidelines that cater to diverse user needs.

Future research should focus on understanding user behavior in real-world contexts, rather than relying on lab-based studies. This will help designers create more effective and engaging interfaces.

Studies have shown that users tend to follow design patterns that are consistent with their prior experiences, such as the use of familiar icons and navigation menus. Designers should prioritize consistency in their designs to improve user experience.

To move forward, researchers should investigate the impact of design on user emotions and cognitive load. This will enable designers to create more emotionally engaging and intuitive interfaces.

The current state of design guidelines is largely based on the work of Don Norman, who emphasized the importance of user-centered design. However, his work was largely focused on print and paper-based interfaces, which are no longer relevant in today's digital landscape.

Take a look at this: Do Crawl Space Ventilation Fans Work

The windcatcher's design is crucial for its effectiveness. A rectangular cross-section and a curved top surface of the shaft are the most recommended shapes in the literature.

To determine the optimal projection height, researchers recommend it be approximately 6 m above the building roof. This ensures a generalizable value that can be widely applied to various ventilated space parameters.

The aspect ratio of a specific component, such as the length-to-width ratio of the inlet or outlet openings, is another important design parameter. This approach helps maintain system efficiency, even when design parameters differ.

Incorporating fins or louvers into the inlet opening can significantly enhance the windcatcher's performance. Fins act as flow straighteners, making the airflow more uniform and reducing radial velocities.

Readers also liked: Windcatcher Genshin

The primary components of a windcatcher are crucial for its functionality. The rectangular cross-section and curved top surface of the shaft are the most recommended shapes in the literature, simplifying and standardizing windcatcher design.

The optimal projection height of a windcatcher is recommended to be approximately 6 m above the building roof. This value provides a generalizable guideline that can be widely applied to various ventilated space parameters, surrounding contexts, and climatic conditions.

The inlet opening size should match the cross-sectional area of the shaft to maintain system efficiency. This approach is widely recognized in the literature and helps designers create a balanced windcatcher design.

The inlet opening area is recommended to be approximately 3% of the floor area of the room. This approach emphasizes the dimensions of the ventilated space as the primary design driver, ensuring that each space is fitted with a windcatcher tailored to its specific characteristics.

The aspect ratio of a specific component, such as the length-to-width ratio of the inlet or outlet openings, should be determined to optimize the windcatcher's performance.

For another approach, see: Naturally Ventilated

Finned, curved inlet openings have been shown to significantly enhance the induced air mass flow rate by acting as flow straighteners, making airflow more uniform.

These fins reduce radial velocities, which can lead to improved performance in windcatcher systems.

The optimal performance of a four-sided windcatcher is achieved when the projection length of the louvers equals the gap between two adjacent louvers.

Increasing the number of louvers can enhance performance up to a certain point, but a short-circuiting effect occurs when the number of louver layers exceeds six.

Curved guide vanes at the bend of the inlet opening can significantly affect airflow characteristics, smoothening the flow and resulting in improved flow uniformity at the windcatcher outlet.

Increasing both the number and radius of the vanes can enhance the airflow rate, with improvements of up to 29% observed in some cases.

The projection of a windcatcher is a crucial aspect of its design. The ideal projection height typically ranges between 6 and 9 m.

In climates like Amman and Erbil, a tower height of 9 m has been found to provide the best airflow performance. This is because the winds in these regions are more favorable at higher altitudes.

In contrast, traditional windcatchers in Yazd perform optimally at a height of 6 m. This is likely due to the unique wind patterns in this region.

For economic and aesthetic reasons, a 6 m height is often preferred. This is a common consideration in windcatcher design, as it balances functionality with visual appeal.

Traditional Egyptian windcatchers, also known as Malqaf, usually do not extend above the roofline. This is because they are designed to capture lower-altitude winds, which are more favorable in the region.

The narrow spacing between the blades in the windcatcher helps to block undesirable dusty desert winds from entering the building. This is a clever design feature that enhances the overall performance of the windcatcher.

In areas with surrounding buildings that are lower than the windcatcher, ventilation rates can be enhanced. This is a benefit of windcatcher design that can be leveraged in specific contexts.

Inlet opening extensions, or walls, can be employed to guide airflow towards the windcatcher's inlet opening and separate high-pressure zones from low-pressure areas above the structure.

The impact of straight inlet extension length has been analyzed by examining various ratios of the extension length to the shaft depth in one-sided windcatchers, and significant performance improvements were observed up to a ratio of 0.5.

In two-sided windcatcher configurations, most inlet extension designs have been shown to enhance air induction into the building.

A divergent inlet design performed best, capturing 2.55% more airflow than the straight inlet and 4.70% more than the bulging convergent inlet at high wind speeds (6 m/s).

Incorporating a wing wall into the inlet opening design has been studied for its performance under low wind conditions, and experiments indicate that the optimal angle for enhancing inflow lies between 15° and 30°.

Upper extension angles of 30° have been found to be optimal for ventilation performance in two-sided windcatchers.

A shaft nozzle is a crucial component in windcatcher systems. It's designed to improve performance by increasing air velocity and mass flow rate.

The most effective shaft nozzle design features a curved shape with finned inlet openings. This design is particularly useful for maximizing mass flow rate.

Research has shown that the longest divider should reach the top of the nozzle for optimal performance. This configuration is essential for achieving a convergent-divergent nozzle type.

A convergent-divergent nozzle type is the most effective design for maximizing mass flow rate and increasing air velocity at the nozzle throat.

Implementing windcatcher ventilation in your building can have a significant impact on achieving green building certifications. This is because windcatchers contribute to key sustainability criteria.

Buildings with windcatchers score higher in energy conservation metrics, which is a crucial factor in achieving green building certifications like LEED and BREEAM. This is a direct result of enhanced natural ventilation and reduced energy consumption.

By incorporating windcatchers, you can improve indoor air quality, a critical factor in green building ratings. This is because enhanced ventilation improves indoor air quality.

Here's a quick rundown of the benefits of windcatcher ventilation in terms of certification:
