Valves Irrigation System Essentials for Homeowners

As a homeowner, you're likely no stranger to the importance of a reliable irrigation system. A well-designed system can save you time, money, and water, while also keeping your lawn and garden looking its best.

A typical residential irrigation system has a main valve that controls the flow of water to the entire system, and this valve is usually located near the water source.

Having a separate valve for each zone allows you to control the water flow to specific areas of your yard, which is especially useful for larger properties or those with varying soil types.

A typical irrigation system uses a combination of valves, pipes, and sprinklers to deliver water to your plants, and a well-maintained system can last for many years with proper care.

Most irrigation valves are used as part of complete sprinkler systems, consisting of various plumbing parts, piping and automatic controllers. Our huge collection has exactly what you're looking for - and if we don't, we'll special order it for you!

The most commonly used automatic valves are composite plastic, while brass valves are mostly used for industrial and large commercial projects. Brass valves are used to control the flow of water through your irrigation system.

Irrigation valves are used with irrigation systems for many applications, including irrigation, commercial landscaping, and watering athletic fields. They're also used for automatic farm irrigation and in-line irrigation.

Here are the key parts of a sprinkler system:

Choosing the right valve is crucial for a smooth-running irrigation system. You'll want to consider the flow rate, as 3/4-inch valves work best in systems with flow rates of around 8-10 gallons per minute (gpm).

For faster flow rates, you'll need larger valves. Climate also plays a role, as anti-siphon valves require winterizing in colder climates.

Inline valves are hidden underground, while anti-siphon valves are visible above ground. You may prefer the look of one over the other.

Don't worry about matching your valve diameter to your pipe size – it's not necessary.

You might enjoy: Valves for Water Pipes

For on-off control, gate, ball, and plug valves are top choices. They function by sliding or turning a flat, cylindrical, or spherical flow control element over an orifice in the valve body.

Gate, ball, and plug valves have sealing or seating surfaces at the orifice that prevent leakage past the flow control element. This is a key consideration for maintaining a tight seal and preventing fluid loss.

In the fully open position, a passage through a gate, ball, or plug valve is unrestricted, resulting in a low pressure loss through the valve. This is a significant advantage in many applications, as it helps to minimize energy losses and maximize efficiency.

Suggestion: HVAC Control System

Choosing the right valve can be a bit overwhelming, but let's break it down. First, consider the flow rate: 3/4-inch valves work best in systems where flow rates are roughly eight to 10 gallons per minute (gpm).

For faster flow rates, choose larger valves. This is a simple rule of thumb that can save you time and money in the long run.

If you live in a colder climate, you'll need to think about anti-siphon valves. They require winterizing, which means you'll need to take extra steps to prepare them for freezing temperatures.

Ultimately, the choice between inline and anti-siphon valves comes down to personal preference and your specific situation.

Valve types play a crucial role in irrigation systems, controlling the flow of water and ensuring efficient watering. Gate valves are the most common type of on-off service valve, with a solid wedge being the most common design.

Gate valves can be classified based on the stem movement, with rising-stem and nonrising-stem being the two main types. A rising-stem makes it easier to determine how far the valve is open at a given time, but requires sufficient space for the stem to rise when fully open.

Throttling and control valves are used when the flow rate must be controlled at a rate below the maximum. Globe valves, angle valves, and "Y" valves are recommended for throttling due to their approximately linear flow control characteristic curves.

Here are some key differences between valve types:

Gate valves should not be used for throttling or controlling liquid streams, as the flow control profile is not linear and difficult to control.

Take a look at this: Hvac System Not Heating

Sprinkler systems rely on various valves to function properly. Most irrigation valves are used as part of a complete sprinkler system.

Control valves direct where the water flows, typically watering your lawn in zones with separate valves for each area. These valves are essential for efficient water distribution.

A valve box protects the valves from damage and pests. It's a crucial component that safeguards the system from external threats.

Sprinkler heads disperse water, but they're not the only part of the system. Pipes and risers move water through the system, making sure it reaches the right spots.

Here's a breakdown of the key valves you'll find in a sprinkler system:

Gate valves are the most common type of on-off service valve. They're used for shutting off or opening a flow path, but not for controlling the flow rate.

The flow control element of a gate valve is a disk or wedge attached to the valve stem. This wedge is usually a solid wedge, which provides positive contact with the wedge guides and reduces chatter when the valve is partially closed.

Curious to learn more? Check out: How to Turn off Hvac System

Gate valves can be classified based on the stem movement, with two types of rising stem (outside or inside thread) and nonrising-stem. The rising-stem type is easier to use, as the threaded portion of the stem is exposed, allowing you to see how far the valve is open.

A rising-stem valve requires sufficient space to allow for the rise of the stem when the valve is fully open. This is important to consider when installing a gate valve.

Gate valves are slow acting due to the turning required to change the position of the control element. However, a quick acting valve can be created by constructing the stem to slide up or down through a mechanical lever.

Gate valves should not be used for throttling or controlling liquid streams.

Additional reading: When to Replace Hvac System

Plug valves are a type of valve intended for on-off service, where the flow control element is a plug that allows liquid to flow when the pierced section is exposed by turning the plug 90°.

The plug valve's compact and simple design makes it easy to construct, but it's not recommended for flow control operations unless specified by the manufacturer. This is because the flow control element doesn't have linear flow characteristics when partially closed, making it difficult to use for flow regulation.

Some plug valves are provided with special plug ports and can be used for throttling, but even then, they're not as effective as other types of valves for this purpose. The main advantage of a plug valve is its compactness, but partial closing can cause rapid wear of internal parts, similar to a gate valve.

If you're looking for a valve that's easy to install and requires minimal maintenance, a plug valve might be a good option. However, if you need precise control over flow rates, you might want to consider other types of valves.

Explore further: Hvac System Types

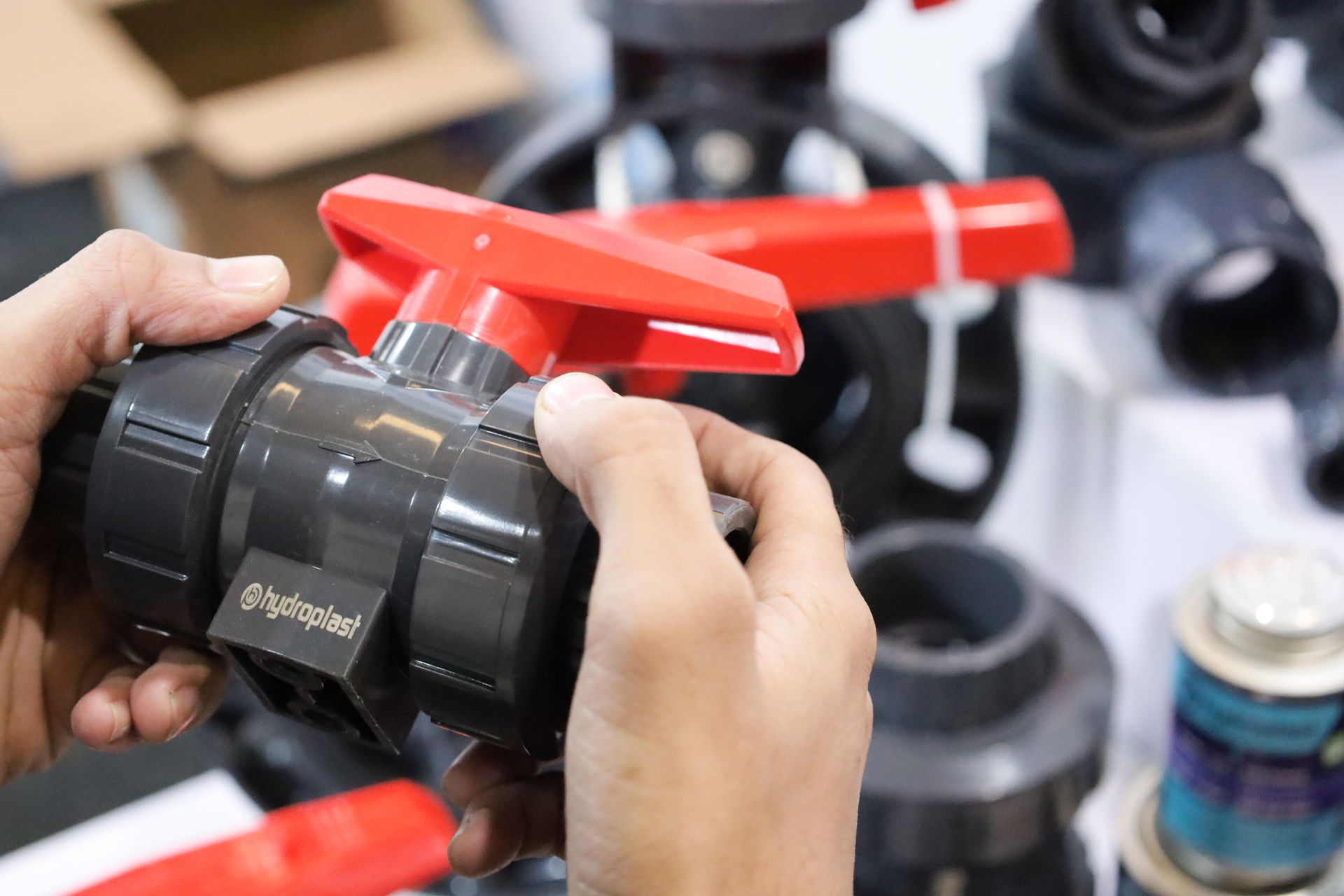

Ball valves are very compact and operate on 90° turns, making them a great option for space-saving applications.

A ball valve is essentially a modification of the plug valve, with a spherical flow control element replacing the plug.

These valves are full-flow units, which means they create minimum pressure loss through the valve when fully open.

Ball valves are not recommended for flow regulation unless specifically designed for throttling, due to their nonlinear flow characteristics.

Ball check valves, on the other hand, have a freely moving ball that fits into a seat and creates a seal, but this design results in relatively high friction loss.

In on-off service, gate, ball, and plug valves are the best choices, as they function by sliding or turning a flat, cylindrical, or spherical flow control element over an orifice in the valve body.

These valves prevent leakage past the flow control element with sealing or seating surfaces at the orifice.

In the fully open position, a passage through a gate, ball, or plug valve is unrestricted, resulting in a low pressure loss through the valve.

Angle and Y valves are designed to minimize pressure losses while maintaining linear flow characteristics.

These types of valves are often used for on-off service, as they experience relatively low-pressure loss.

In an angle valve, the liquid takes only one 90° turn, which reduces the number of bends and pressure loss compared to a globe valve.

A "Y" valve forces the liquid into two turns, but the severity of the bends is decreased, and the liquid makes two 45° turns.

This design gives a relatively unrestricted flow path, which is nearly as free as in a gate valve.

Foot valves are most often used to maintain a pump's prime. They're a simple yet effective solution to prevent water from leaving a suction pipe and the pump when it's not in operation.

A foot valve is installed at the end of the suction pipe. This strategic placement is key to its function.

It's a common sight in many industrial settings, where pumps are used to move water or other liquids.

A unique perspective: Misting System Pumps

When deciding on a valve size, keep in mind that 3/4-inch valves are ideal for most residential applications with a flow rate of around 8 to 10 gpm. For higher flow rates, a 1-inch valve is recommended.

You should also consider installing flow control to customize performance and ensure the right amount of water is used in each zone. This can help conserve water by preventing fogging and misting.

It's worth noting that valve diameter does not necessarily need to match pipe diameter. This can be a convenient option when designing and installing your irrigation system.

Here's a quick reference guide to help you choose the right valve size based on flow rate:

Check valves are essential for preventing backflow in piping systems.

Check valves can be designed with different control elements, including a ball, disk lift, tilting disk, flapper, or swinging disk.

These control elements are lifted by the pressure of liquid flowing in the normal direction and return to the closed position due to gravity or gravity combined with spring action when the flow stops.

A ball check valve uses a freely moving ball that fits into a seat and creates a seal, but it has relatively high friction loss.

Flapper or swing check valves feature a flapper or swing disk that pivots above the main flow path and quickly closes when reversed flow is detected.

Some flapper or swing check valves are equipped with a spring that requires some pressure buildup before it opens and helps bring the disk back to the closed position.

Tilting disk check valves provide very rapid closing due to the position of the disk, eliminating chattering or fluttering like swing and ball check valves.

Diaphragm check valves use a flexible sleeve that opens on forward flow but closes against reverse flow, making them suitable for fluids containing solids.

If this caught your attention, see: Toilet Valve Flapper

Pressure reducing valves are a must-have in irrigation systems, especially when you have components like emitters in micro-irrigation systems that require a specific lower pressure to function properly.

They can be used in systems with variable pressure to maintain a lower constant pressure downstream of the valve. Pressure reducing valves usually consist of two valves built much like the diaphragm and spring-loaded relief valve.

The valve is throttled by the action of an adjusted spring on the top of the diaphragm and the pressure of the fluid underside of the diaphragm. This action allows the pressure to remain at the set level.

In large systems, built-in pressure regulators can be a lifesaver, controlling the flow of water independently and not relying on an external regulator.

Deciding on the right valve size for your irrigation system depends on the flow rate, and 3/4-inch valves are ideal for most residential applications with a flow rate of 8 to 10 gpm.

Installing flow control will allow you to customize performance by ensuring the right amount of water is used in each zone, helping to conserve water by preventing fogging and misting.

Valve diameter does not necessarily need to match pipe diameter, giving you more flexibility in your design.

External bleed valves are ideal for flushing dirt from lines during installation and repairs, while internal bleed valves vent water to the downstream side to prevent water from leaking.

Here's a quick rundown of valve types and their uses:

A 1-inch valve should be used if the flow rate exceeds 15 gpm, ensuring your system can handle the increased water demand.

The pressure drop through a valve can be calculated using Equation 1, taking into account the resistance coefficient K and the velocity of the water in the irrigation system.

Irrigation timers are a crucial component of any smart irrigation system, allowing you to automate watering schedules and ensure your plants receive the right amount of water at the right time.

According to our previous discussion, a typical irrigation timer can be programmed to water plants at intervals of 15 to 30 minutes, depending on soil type and plant requirements.

The type of irrigation timer you choose will depend on the size and complexity of your irrigation system, with digital timers being more suitable for larger systems and analog timers better suited for smaller systems.

A key benefit of using an irrigation timer is that it can help prevent overwatering, which can lead to root rot and other problems.

By setting a timer to water plants during the early morning hours, you can ensure that the water has a chance to be absorbed into the soil before the sun gets too high in the sky.

In some cases, irrigation timers can be connected to rain sensors, which automatically pause watering when it rains, helping to conserve water and reduce waste.

A sprinkler system has several key components that work together to deliver water to your lawn. One of the most important components is the water source, which can be your municipal water supply, a well, a pump, or a nearby body of water.

Broaden your view: Hvac System Components

A timer is also crucial, as it controls the operation of the system and ensures that your lawn gets the right amount of water at the right time. Most modern irrigation systems include timers, making it easy to set up a schedule that works for you.

The system also needs a backflow preventer to prevent contaminated water from flowing back into your home's water supply. This is a critical safety feature that helps keep your family healthy.

Here are some of the key components of a sprinkler system:

Some valves used in lawn irrigation systems include automatic distributing valves and battery-operated programmable valves. These valves allow you to switch between different zones and program irrigation events, making it easy to customize your watering schedule.

In lawn irrigation systems, you'll often come across miscellaneous valves that make setup and management a breeze.

Automatic distributing valves allow you to switch between zones by simply turning the water supply on and off in sequence.

By using different cams, which are easily exchangeable, you can automatically switch from one to six zones with this type of valve.

A six-outlet automatic distributing valve is a great example of this in action.

Battery-operated programmable valves, on the other hand, let you program irrigation events with ease.

These valves come with a controller that lets you set the frequency of irrigation, the length of watering, and the time of day when irrigation should begin.

Two 9-volt batteries power this valve, making it a convenient option for many gardeners.

You'll typically need one programmable valve per zone, but you can also water multiple zones by combining a programmable valve with an automatic distributing valve.

Explore further: Automatic Irrigation System for Garden

A sprinkler system is made up of several key parts that work together to keep your lawn looking its best. The water source is the starting point, whether it's your municipal water supply, a well, a pump, or a nearby body of water.

A timer is a crucial component, controlling the operation of the system and ensuring that your lawn gets the right amount of water at the right time. Most modern irrigation systems include timers.

A backflow preventer is also essential, preventing your sprinkler system from contaminating your home's water supply. This is a critical safety feature that you shouldn't overlook.

The water pump is responsible for ensuring the system works at optimal pressure, and large systems often have multiple pumps to achieve this.

A water meter enables you to monitor system performance and water usage, helping you identify areas for improvement.

Control valves direct where the water flows, usually in zones with separate valves for each area. This allows you to customize watering schedules for different parts of your lawn.

Pipes and risers move water through the system, delivering it to the sprinkler heads that disperse the water.

Here are the key parts of a sprinkler system:

Molded bolt valves are a game-changer for sprinkler system maintenance.

Regular maintenance is necessary to keep sprinkler systems running smoothly.

In this design, the bolt that holds the valve together is fused to the body.

As a result, you won't have to worry about dropping it into tall grass while you work.
