Simple Hvac System Basics Explained

A simple HVAC system is made up of a few key components, including an air handler, a furnace or air conditioner, and ductwork. This setup is designed to provide a comfortable indoor climate by circulating heated or cooled air throughout a building.

The air handler, which is usually located in an attic or basement, is responsible for circulating air through the ductwork. It's essentially a big fan that blows air through the system.

In a typical simple HVAC system, the air handler is connected to a furnace or air conditioner, which is responsible for heating or cooling the air. This is often done using a heat exchanger or refrigerant.

The ductwork, which is usually made of sheet metal or fiberglass, carries the heated or cooled air from the air handler to the various rooms in the building.

On a similar theme: What Kind of Hvac System Is Usually Installed in Florida

Your HVAC system is made up of several essential components that work together to provide heating, ventilation, and air conditioning throughout your home.

The thermostat is the control center of your HVAC system, allowing you to set the desired temperature and signaling the system to adjust when the temperature deviates from your setting.

A furnace is used for heating in many homes, especially in colder climates, and heats the air to be distributed through the ductwork.

The air conditioner cools your home by removing heat from indoor air and releasing it outside using a refrigeration cycle.

The evaporator coil absorbs heat from the indoor air and carries it away with the refrigerant, while the condenser coil releases this heat into the outdoor air.

The blower motor circulates air through your home's ductwork, responsible for the movement of both heated and cooled air.

Properly insulated and sealed ducts are essential for efficient AC operation, as they help distribute conditioned air throughout your home.

The refrigerant lines transport refrigerant between the indoor and outdoor units, facilitating the cooling process.

Explore further: Hvac Home System

A well-functioning thermostat is the backbone of a comfortable home and an efficient HVAC system.

The thermostat is the part of the system you interact with the most. You can manually set it to maintain your preferred temperature or opt for a programmable thermostat that adjusts the temperature even when you’re away, saving energy and reducing costs.

A bad thermostat can cause uneven temperatures and unexpected energy bills. Spotting the signs of a bad thermostat early on can help you avoid these issues.

A well-functioning thermostat is the backbone of a comfortable home and an efficient HVAC system, but they aren’t perfect.

Noticing uneven temperatures is a common sign of a bad thermostat.

A thermostat might be to blame if you're experiencing unexpected energy bills.

Spotting the signs of a bad thermostat is crucial to determining if it's faulty.

South Carolina winters bring unique challenges, especially with the coastal climate influencing temperature fluctuations and humidity levels. Knowing the best temperature for your thermostat can help balance comfort and energy efficiency during these cooler months.

A good starting point is to set your thermostat between 68°F and 72°F, which is a comfortable temperature range for most people. This temperature range also helps to minimize energy consumption.

The coastal climate in South Carolina means that temperatures can fluctuate significantly between day and night, so it's essential to adjust your thermostat accordingly. Aim to lower the temperature by 5-10°F at night to save energy.

Setting your thermostat to 70°F is a good compromise between comfort and energy efficiency. This temperature allows you to stay cozy while also reducing your energy bills.

Consider reading: Is Bryant a Good Hvac System

Your HVAC system is made up of several essential components that work together to provide heating, ventilation, and air conditioning throughout your home. The thermostat is the control center, allowing you to set the desired temperature and signaling the system to adjust accordingly.

The furnace is used for heating in many homes, especially in colder climates, and heats the air before distributing it through the ductwork. The air conditioner cools your home by removing heat from indoor air and releasing it outside.

On a similar theme: Centralized Aircon for Home

Here's a breakdown of the main components:

The components of an HVAC system are what make it tick. The thermostat is the control center, allowing you to set the desired temperature and signal the system to adjust accordingly.

A furnace is a common heating component, used in many homes, especially in colder climates. It heats the air and distributes it through the ductwork to various rooms. The evaporator coil, part of the indoor unit of your AC system, absorbs heat from the indoor air and carries it away by the refrigerant.

The condenser coil, located in the outdoor unit, releases the heat absorbed from inside your home into the outdoor air. The blower motor circulates air through your home's ductwork, responsible for the movement of both heated and cooled air. Properly insulated and sealed ducts are essential for efficient AC operation.

The refrigerant lines transport refrigerant between the indoor and outdoor units, facilitating the cooling process. The ductwork is a network of ducts throughout your home that distributes conditioned air. The air return sucks air in through the filter and passes it to the main system.

You might enjoy: Samsung Variable Refrigerant Flow System

The filter traps dust and other air contaminants before they enter the main system. Regular filter replacement is essential to improve efficiency of air flow. The blower is configured to run at high, medium, or low speed.

Here's a breakdown of the main components:

The AC capacitor and compressor are two critical components of your air conditioner. They play very different but equally important roles in keeping your home cool and comfortable.

The AC capacitor supplies power to the compressor and fan motor, allowing them to operate efficiently. It's essentially the brain of the operation, ensuring a smooth flow of electricity.

A faulty capacitor can cause the compressor to malfunction, leading to reduced air flow and increased energy bills. At Carney and Son, we've seen it happen more times than we can count.

The compressor, on the other hand, is responsible for compressing refrigerant and transferring heat from your home to the outside. It's the heart of the system, pumping refrigerant through the coils and fan.

Suggestion: Does a New Hvac System Increase Home Value

A malfunctioning compressor can be costly to repair or replace, and may even require the entire system to be replaced. We've seen it happen to homeowners who neglected to maintain their AC system over time.

In summary, the AC capacitor and compressor are two essential components that work together to keep your air conditioner running smoothly. By understanding their roles and functions, you can take steps to prevent costly repairs and ensure your home stays cool and comfortable all summer long.

Related reading: Refrigerator Compressor Cycle

The exhaust outlet is a crucial part of a HVAC system, responsible for expelling exhaust from the system.

It's essential to frequently check the chimney flue or vent to ensure it's clear of debris.

Carrying out maintenance on an annual basis is recommended to prevent blockages in the system.

Your simple HVAC system is made up of several essential components that work together to provide heating, ventilation, and air conditioning throughout your home.

The thermostat is the control center of your HVAC system, allowing you to set the desired temperature and signaling the system to adjust when the temperature deviates from your setting.

A furnace is used for heating in many homes, especially in colder climates, and heats the air, distributing it through the ductwork to various rooms.

The air conditioner cools your home by removing heat from indoor air and releasing it outside, using a refrigeration cycle to achieve this.

The evaporator coil absorbs heat from the indoor air, which is then carried away by the refrigerant, while the condenser coil releases the heat absorbed from inside your home into the outdoor air.

The blower motor circulates air through your home's ductwork, responsible for the movement of both heated and cooled air.

Properly insulated and sealed ducts are essential for efficient AC operation, ensuring that conditioned air is distributed evenly throughout your home.

Here's a breakdown of the main components of your simple HVAC system:

Condenser CoilReleases heat absorbed from inside your home into the outdoor airBlower MotorCirculates air through your home's ductworkDuctworkDistributes conditioned air throughout your home

These components work together to provide a comfortable indoor temperature and maintain indoor air quality, ensuring that you and your family can enjoy a healthy and happy living space.

If this caught your attention, see: Cost to Install Hvac System without Ductwork

Regular filter changes are a must to ensure your HVAC system operates efficiently. Clogged filters restrict airflow, reducing system efficiency and potentially causing damage.

Cleaning the coils is another crucial task. Dust and debris can accumulate on the evaporator and condenser coils, hindering heat exchange. Regular cleaning can improve system efficiency.

Inspecting your ducts regularly is vital. Leaky or poorly insulated ducts can lead to energy waste. Periodic inspections and repairs can prevent conditioned air from escaping.

Annual AC maintenance with an experienced technician is a good idea. They can inspect, clean, and calibrate system components, ensuring peak performance.

Your thermostat should be calibrated to ensure it accurately reads and controls the temperature in your home.

Sealing leaks or gaps in your home's envelope is essential. This can affect AC efficiency and should be checked regularly.

Suggestion: Cleaning Hvac System Cost

Boilers are a crucial part of a simple HVAC system, responsible for transferring heat to water or producing steam to warm your home.

Boilers typically use a fuel source to raise the water's temperature inside the boiler, which then travels through radiators to warm the air.

The boiler continues to heat the water or steam until the desired temperature is reached, at which point it returns to the boiler to be reheated again.

Heat pumps, on the other hand, can switch between air conditioning and heating modes by reversing the refrigeration cycle, which involves switching the roles of the indoor and outdoor coils.

A unique perspective: Hvac System Leaking Water

A boiler is a crucial component in your home's heating system, responsible for warming your space. Boilers transfer heat to water or produce steam to warm your home.

The thermostat plays a key role in the process, detecting a drop in temperature and triggering the boiler to turn on. Heat from the fuel source raises the water's temperature inside the boiler.

As the heated water or steam travels through radiators, it releases its heat to warm the air. The cooled water or condensed steam returns to the boiler to be reheated and continue the heating process.

This cycle repeats until the desired temperature is reached, ensuring your home stays warm and cozy.

For another approach, see: Boiler Hvac System

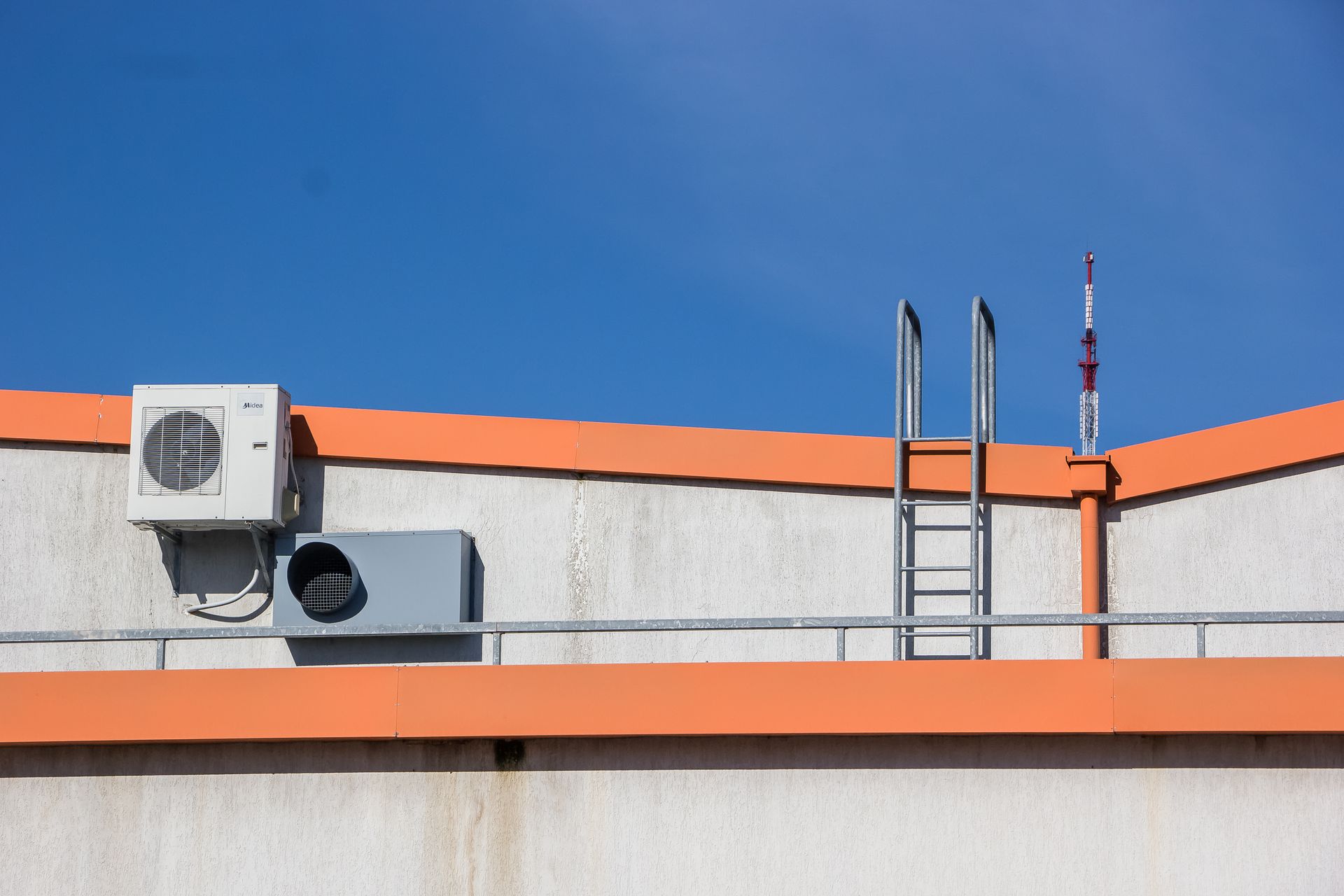

The Outdoor Unit is a crucial component of your HVAC system, and it's often the first thing that comes to mind when you think of heating and cooling.

This unit is usually located outside your home and has a fan that's essential for providing air flow. It's like a workhorse, constantly working to keep your home comfortable.

The Outdoor Unit exchanges heat with the surrounding air, depending on the season. In the summer, it releases heat, while in the winter, it collects it.

To keep your Outdoor Unit running efficiently, make sure to clear any vegetation or debris that's accumulated near it. I've seen it happen to friends who have neglected to do this, and it's a real pain to deal with when the unit starts malfunctioning.

Intriguing read: What Is Done When an Hvacr System Is Commissioned

HVAC systems have their own set of terms that might seem confusing at first, but they're actually pretty straightforward.

Air conditioners are designed to cool and dehumidify indoor air, making them perfect for hot summer days.

You might be wondering what the difference is between an air conditioner and a heat pump. Well, heat pumps not only cool and dehumidify, but also heat the air, making them a great option for year-round comfort.

Furnaces, on the other hand, heat the air using natural gas, propane, oil, or even wood. They're a great option for homes that need a reliable heat source.

Electric heaters provide radiant heat using electricity, making them a convenient option for small spaces or temporary heating needs.

Here's a quick rundown of the different types of heating options:
