Measuring the velocity of air flow from an AC unit is crucial for better HVAC performance. The velocity of air flow can be measured using an anemometer, which can be placed in the return air duct or in the supply air duct.

A typical residential AC unit operates at a velocity of around 300 to 500 feet per minute (fpm). This velocity is usually measured at the register or grille of the AC unit.

To ensure proper air flow, the velocity should be checked at multiple points in the duct system. This includes the supply duct, return duct, and any branches or sub-ducts.

Intriguing read: Air Flow Diffuser

Measuring Air Flow Velocity

To measure air flow velocity, you'll need an anemometer, which is the most practical tool for homeowners and non-technical people.

An anemometer measures air velocity, and it's essential to place it close to the supply air register to get accurate readings. If the register has a damper, open it fully before measuring.

Credit: youtube.com, Measuring Air Velocity using Testo 410i

For better accuracy, take multiple readings at different points and calculate the average air velocity. This will give you a more precise measurement of the air flow velocity.

If you're using a pitot tube, insert it into the airflow with the intake hole facing the air stream. Read the manual to learn how to operate it correctly, and the display monitor should show the air flow velocity in CFM, CMH, or LPS.

It's also worth noting that pitot tubes are suitable for measuring air flow velocity in rigid rectangular metal ducts and rigid spiral round ducts. However, they may not be accurate for soft and flexible round ducts.

To calculate the air flow velocity in feet per minute (FPM), use the equation FPM = 4005 x √ΔP, where ΔP is the velocity pressure. This value can be obtained from a differential pressure transmitter paired with a PT differential pitot tube installed in the duct.

HVAC Fundamentals

Credit: youtube.com, Measuring Static Pressure on an Air Handler for Airflow CFM!

To measure the velocity of air flow from an AC unit, you need to understand the basics of airflow.

Airflow is a critical aspect of HVAC systems, and measuring it correctly is essential.

To do this, you'll need to use an airflow measuring device, specifically an anemometer.

An anemometer is a small device that measures air velocity, but it requires manual calculations to convert to air volume.

For HVAC applications, you'll want an anemometer with a small fan attached to a display monitor.

This type of anemometer is available on online marketplaces like Amazon.

Measuring Techniques

To measure the velocity of air flow from an AC unit, you'll need to use a device specifically designed for airflow measurement.

An anemometer is a practical and affordable way to measure airflow, especially for non-technical people. It's a simple device that can be placed near the supply air register to measure air velocity.

For better accuracy, take multiple readings at different points around the register, such as 4 readings at each register, and calculate the average air velocity.

Curious to learn more? Check out: How to Measure Window for Ac Unit

Credit: youtube.com, Measuring Airflow CFM on HVAC Systems! Finding Airflow Problems!

A pitot tube is a more accurate method for measuring airflow, but it requires drilling small holes in the duct and can be more expensive than an anemometer.

To use a pitot tube, insert it into the duct with the intake hole facing the airflow, and read the display monitor to get the airflow measurement in CFM, CMH, or LPS.

If you're measuring airflow in a rectangular metal duct, you can use a pitot tube with a total pressure tube and a static pressure tube.

To ensure accurate measurements, position the pitot tube 10 straight duct diameters upstream and 3 straight duct diameters downstream of the traverse plane.

When measuring airflow in a circular duct, measure across 3 diameters, taking a minimum of 6 measurements per diameter.

To perform a duct traverse, ensure the nose of the pitot tube is parallel to the duct wall and facing the airflow, and take readings in long, straight runs of duct, avoiding elbows or other obstructions.

Here's a summary of the measuring techniques:

Measuring at Register

Credit: youtube.com, Anemometers and Converting Velocity To CFM

To measure airflow at each register, you'll need an anemometer. It's the easiest and cheapest way to get an estimate of the airflow.

Place the anemometer close to the supply air register to measure the air velocity. Sometimes, the register may have a damper that can focus the airflow in one direction.

Open up the damper fully and then measure the air velocity. For better accuracy, measure the air velocity of the register at different points, such as 4 readings at each register.

Here's a simple table to help you remember the steps:

By following these steps, you'll get a good idea of the airflow at each register.

Understanding Ducts

To accurately measure the velocity of air flow from an AC unit, you need to understand ducts.

A duct traverse is a crucial step in measuring airflow accurately. You should take several readings across a traverse plane, convert them to velocity, and then average them.

Credit: youtube.com, Calculating CFM or Velocity from Area

The preferred location of the traverse in a supply duct is in a straight section with 10 straight equivalent duct diameters upstream, and 3 straight equivalent duct diameters downstream of the traverse plane.

For rectangular ducts, you should take airflow measurements at a minimum of 25 points, regardless of duct size. The number of points depends on the duct size: 5 points on each side for ducts with sides shorter than 30", 6 points for ducts with sides between 30 and 36", and 7 points for ducts with sides longer than 36".

You can use a pitot tube to measure airflow straight at the supply air duct of the HVAC unit, but this method requires drilling small holes at the bottom of the duct.

To ensure accurate measurements, avoid taking readings right after an elbow or a reducer. If you must measure airflow near a duct elbow, focus on the region where most of the airflow will be concentrated.

Here are the recommended locations for taking airflow measurements:

  • For duct sides shorter than 30", 5 points on each side (5*5=25).
  • For duct sides of 30 through 36", 6 points on each side.
  • For duct sides longer than 36", 7 points on each side.

The equivalent duct diameter is calculated using the formula: √ (4HV/π), where H is the horizontal duct dimension, V is the vertical duct dimension, and π is approximately 3.14.

Supply Diffusers

Credit: youtube.com, Airflow CFM Measured with a Hot Wire Anemometer!

There are various types of supply diffusers used in HVAC systems to control air flow.

Supply diffusers are designed to distribute air evenly throughout a space, which is crucial for maintaining a consistent indoor climate.

The 6 Types of Supply Air Diffusers and Their Applications section highlights the diversity of diffusers available in the market.

Linear diffusers are a common type of supply diffuser, often used in commercial and industrial settings.

Their versatility and ability to direct air flow in multiple directions make them a popular choice among HVAC professionals.

Ceiling diffusers are another type of supply diffuser, typically installed in drop ceilings to distribute air throughout a room.

They're often used in residential settings due to their discreet and unobtrusive design.

In addition to linear and ceiling diffusers, there are other types of supply diffusers, each with its own unique characteristics and applications.

Calculations and Standards

The key to measuring velocity of air flow from an AC unit lies in understanding the calculations and standards involved. To find the Flow Velocity in feet per minute (FPM), you need to use the equation FPM = 4005 x √ΔP, where ΔP is the Velocity Pressure.

The Velocity Pressure value is provided by a differential pressure transmitter paired with a PT Differential Pitot Tube installed in the duct. This tube samples multiple points across its length and is available in various lengths, including 3", 5.2", 7.5", and 9.7".

Unit Conversion Table

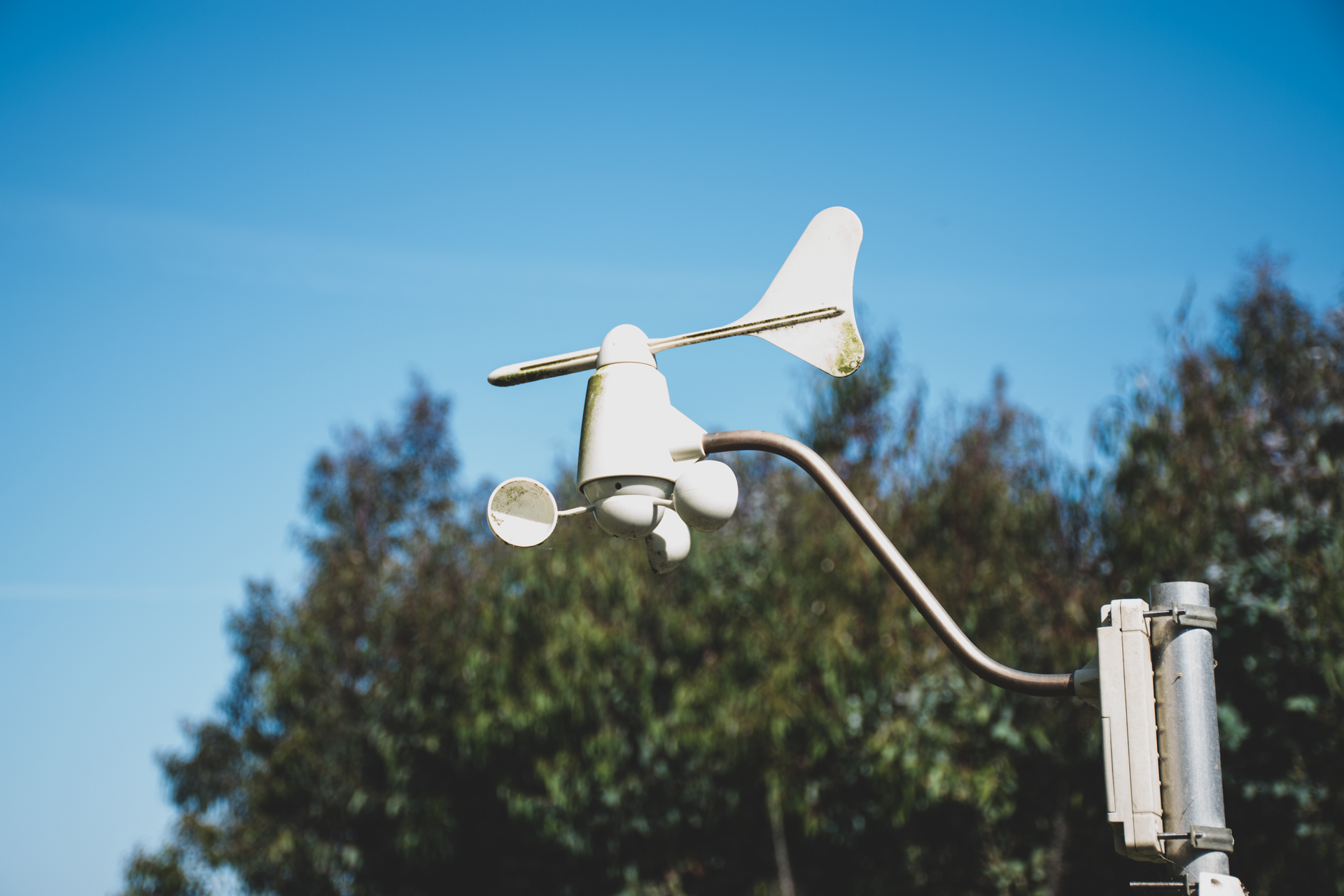

A white anemometer measuring wind speed against a clear blue sky, surrounded by greenery.
Credit: pexels.com, A white anemometer measuring wind speed against a clear blue sky, surrounded by greenery.

Calculations and Standards are crucial in HVAC to ensure efficient and safe operation of equipment. I've worked with many HVAC systems, and I can attest that understanding unit conversions is essential for proper functioning.

The most commonly used unit of measurement for airflow in HVAC is CFM, which stands for cubic feet per minute. This unit is widely used in the industry, and it's great for everyday applications.

To facilitate communication and calculations, a unit conversion table is often used. This table helps convert between different units of measurement, such as CFM, CMH, and LPS. For instance, 1 CFM is equivalent to 1.7 CMH.

Here's a handy conversion table to keep handy:

This table will help you quickly convert between different units, ensuring accuracy and efficiency in your calculations.

Duct Velocity Pressure: Standards & Calculations

Duct velocity pressure is a crucial factor in designing a duct system, and it's essential to understand the standards and calculations involved. The velocity of the air traveling inside the duct is a key consideration.

Credit: youtube.com, Static, Velocity, and Total Pressure Explained

The velocity pressure is measured using a differential pressure transmitter, which is significantly less costly than using air flow stations or flow meters. This method involves calculating CFM using the formula: CFM = FPM x Duct Cross Sectional Area.

To measure duct airflow accurately, a pitot tube is often used to measure the airflow straight at the supply air duct of the HVAC unit. This method requires drilling a few small holes at the bottom of the duct.

The airflow reading should be taken at a straight duct, ideally with about 6 ft of straight length before the measurement point. Measuring airflow near a duct elbow can be inaccurate, as most of the airflow will be concentrated at one side of the duct.

The velocity pressure value is provided by either an ACI's DLP or MLP2 differential pressure transmitter paired with a PT Differential Pitot Tube installed in the duct. The insertion depth of the PT should cover as much of the width of the duct as possible without touching the opposite side.

To calculate flow velocity in FPM, use the equation: FPM = 4005 x √ΔP (The square root of the Velocity Pressure). The Velocity Pressure value is obtained from the differential pressure transmitter.

Credit: youtube.com, Types of pressure in HVAC & It's calculations II STATIC, TOTAL, VELOCITY PRESSURE II

Here's a summary of the key points:

  • Use a differential pressure transmitter to calculate CFM: CFM = FPM x Duct Cross Sectional Area
  • Measure duct airflow accurately using a pitot tube
  • Take airflow readings at a straight duct with 6 ft of straight length before the measurement point
  • Use a PT Differential Pitot Tube to obtain Velocity Pressure value
  • Calculate flow velocity in FPM using the equation: FPM = 4005 x √ΔP

Velocity Measurement

To measure the velocity of air flow from an AC unit, you'll need to use an anemometer, which is the easiest and cheapest way to do so.

You can place the anemometer close to the supply air register to measure the air velocity. If the register has a damper, open it fully to get an accurate reading.

For better accuracy, take multiple readings at different points and average them out. For example, you can take 4 readings at each register and get the average air velocity.

To get a more accurate measurement, you can use a pitot tube to measure the airflow straight at the supply air duct of the HVAC unit. This method requires you to drill small holes at the bottom of the duct.

Here's a rough guide to help you determine the number of points to take for a duct traverse:

This will give you a good idea of the air velocity in your ducts.

Unit of Measurement

Credit: youtube.com, # units and measurement # units# measurement # velocity # acceleration

Airflow in HVAC can be a bit confusing, but it's essential to understand the different units of measurement. The most commonly used unit is CFM, which stands for cubic feet per minute, and it's also expressed as ft/min.

CFM is widely used in the US and other countries that follow the Imperial system. The SI unit, on the other hand, uses m/hr, which is equivalent to CMH. This unit is commonly used in countries that follow the metric system.

You may come across other units like L/s, which stands for litre per second. This unit is sometimes used in HVAC, but it's not as widely used as CFM or m/hr.

To make things easier, here's a quick conversion table:

Velocity Measurement in Ducts

To measure velocity in ducts, you'll need a pitot tube, which is a device that measures the difference in pressure between the inside and outside of the duct. This is the most accurate way to measure velocity in ducts, and it's especially useful for measuring rigid rectangular metal ducts and rigid spiral round ducts.

Credit: youtube.com, Performing a Duct Traverse

The pitot tube works by inserting the intake hole against the airflow and reading the display monitor to get the airflow in CFM, CMH, or LPS. This process should be done according to the instruction manual for the pitot tube.

To calculate flow velocity in feet per minute (FPM), you'll need to use the equation FPM = 4005 x √ΔP, where ΔP is the velocity pressure. The velocity pressure value can be provided by a differential pressure transmitter paired with a PT differential pitot tube installed in the duct.

Here's a table to help you understand the equivalent duct diameter calculation:

The equivalent duct diameter is calculated by taking the square root of (4HV/π), where H is the horizontal duct dimension and V is the vertical duct dimension. This calculation is important for determining the traverse location in a supply duct.

In a supply duct, the preferred location of the traverse is in a straight section of duct with 10 straight equivalent duct diameters upstream and 3 straight equivalent duct diameters downstream of the traverse plane. However, a minimum of 5 duct equivalent diameters upstream and 1 duct equivalent diameter downstream may give adequate results.

Credit: youtube.com, How to Perform A Pitot Tube Traverse For Flat Oval Ducts - Engineered Air Balance

When measuring velocity in a duct, it's essential to understand the airflow pattern. Directly measuring the airflow at the supply air outlet is more accurate but prone to error, so it's recommended to take the airflow reading at a straight duct with about 6 ft (2 m) of straight length before the measurement point.
