Advancements in Cooling Technology for Efficient Data Centers

Advancements in cooling technology have been a game-changer for efficient data centers.

The use of air-side and water-side economization has significantly reduced energy consumption and costs.

One notable example is the implementation of air-side economization, which can save up to 30% of energy costs.

Data centers are now designed with more efficient cooling systems, such as free cooling systems that use outside air to cool the servers.

Free cooling systems can reduce energy consumption by up to 90% during mild temperatures.

The integration of advanced sensors and monitoring systems has also improved cooling system performance and reduced waste.

Broaden your view: Free Cooling

Phase Change Material (PCM) coolers are highly efficient in thermal energy storage, making them useful for maintaining desired temperature conditions over extended periods.

These coolers can be integrated into building materials like walls or ceilings, or used in standalone cooling systems.

They're especially advantageous in balancing energy loads, reducing peak time energy demands, and enhancing overall energy efficiency in cooling systems.

A fresh viewpoint: Types of Residential Heating and Cooling Systems

Heat absorption is another effective cooling method, utilizing the buoyance of hot air and efficient coil technology to absorb heat.

This results in reduced fan power, drawing hot air from the rack and channeling it through coils to provide great benefit to both the transporting and rejection of heat.

The Delta³, for example, removes heat at the source, drawing hot air from the rack and channeling it through coils.

Additional reading: Dyson Am09 Hot and Cool Fan

Delta Cube, also known as Delta³, is the industry's only air-cooled system capable of supporting high, mixed, and variable power densities exceeding 50 kW per rack in the same row, without stranding capacity.

This system is a game-changer for data centers, allowing them to pack more power into a smaller space without sacrificing cooling performance.

Delta³'s unparalleled air-cooling capability makes it an attractive option for companies looking to upgrade their cooling systems without breaking the bank.

Direct-to-chip cooling systems, like the one discussed in the webinar "Is direct-to-chip cooling leading the pack?", offer superior heat transfer and easier retrofitting compared to immersion cooling.

However, Delta³'s air-cooling capability is unmatched, allowing it to support power densities that are simply not possible with other systems.

Aligned Data Centers' Advanced Cooling Lab is pushing the boundaries of cooling, power responsiveness, and future-proofing IT investments, and Delta³ is at the forefront of this innovation.

For more insights, see: How to Cool down without Aircon

Handling the heat is a serious business, especially when it comes to cooling systems. Phase Change Material (PCM) coolers are highly efficient in thermal energy storage, making them useful for maintaining desired temperature conditions over extended periods.

These coolers use materials that absorb and release thermal energy during the process of melting and solidifying at specific temperatures. They can be integrated into building materials like walls or ceilings, or used in standalone cooling systems.

The Delta³ removes heat at the source, drawing hot air from the rack and channeling it through coils. This reduces fan power to 1% of IT load versus 10% for a typical CRAH unit.

Heat is absorbed and transported by the Delta³, but it is the chiller that rejects the heat into the atmosphere. Even on the hottest day of the year, Aligned’s cooling systems offer industry-leading PUE.

The Delta Cube (Delta³) is the industry’s only air-cooled system capable of supporting high, mixed, and variable power densities exceeding 50 kW per rack in same row, without stranding capacity. This is a game-changer for data centers and other high-power applications.

Worth a look: Heat Pump Ac Unit Not Cooling

Electrocaloric refrigeration is an innovative cooling technology that uses the electrocaloric effect, where certain materials change temperature in response to an applied electric field, offering a highly efficient and environmentally friendly cooling system.

This technology is particularly promising for small-scale applications like electronics cooling, providing a compact and noiseless solution.

Hybrid Photovoltaic-Thermal (PVT) cooling systems combine solar photovoltaic (PV) panels with thermal cooling mechanisms, maximizing the efficiency of solar panels while providing an eco-friendly cooling solution.

PVT systems can significantly reduce energy consumption in buildings and have the potential to be a game-changer in both the renewable energy and cooling sectors.

Here are some innovative cooling solutions:

Geothermal cooling harnesses the Earth's stable underground temperatures, presenting a reliable and renewable cooling source.

These systems circulate fluid through subterranean pipes, exploiting the Earth's inherent heat to provide effective cooling solutions, especially during summer.

A major benefit of geothermal cooling is its ability to maintain constant temperatures, thereby drastically cutting the energy needed compared to traditional methods.

Geothermal cooling is particularly advantageous in regions with extreme temperature fluctuations, offering a sustainable, cost-efficient cooling alternative with minimal environmental impact.

This technology lowers overall energy use and contributes to reducing the carbon footprint, aligning with worldwide initiatives for environmental sustainability and climate change mitigation.

We've been innovating cooling technologies for over a decade to help transition customers from air to liquid cooling or hybrid cooling environments with proven, turnkey cooling solutions. This expertise has allowed us to stay ahead of the curve and help customers be ready for what's now, and what's next.

Solar cooling technologies have made significant advancements in harnessing renewable energy innovations for cooling. Active solar cooling employs solar panels to transform sunlight into electricity, which then operates air conditioning systems.

Biomass cooling uses organic materials like agricultural residue, wood chips, and urban waste to generate renewable energy in forms like biogas or biofuels. This method is particularly effective in waste reduction and in exploiting readily available resources.

Hybrid Photovoltaic-Thermal (PVT) cooling systems combine solar photovoltaic (PV) panels with thermal cooling mechanisms, maximizing the efficiency of solar panels while providing an eco-friendly cooling solution. PVT systems can significantly reduce energy consumption in buildings.

Additional reading: Misting Cooling Systems Outdoors

Liquid cooling technology has been innovating for over a decade to help organizations overcome high-performance computing-related infrastructure challenges. Liquid cooling can help organizations prevent data center disaster in the age of AI.

The Delta³ removes heat at the source, drawing hot air from the rack and channeling it through coils. This provides great benefit to both the transporting and rejection of heat.

DeltaFlow~ liquid cooling is designed to meet the increased density requirements and rising temperatures of next-generation technologies. This scalable infrastructure and flexible cooling technology is perfect for GPU and TPU clusters essential to running artificial intelligence, high-performance computing, and machine learning applications.

Waterless design has become a crucial aspect of innovative cooling solutions. Delta³ is combined with a state-of-the-art waterless heat rejection system to create a sustainable, waterless solution.

PCM coolers are highly efficient in thermal energy storage, making them useful for maintaining desired temperature conditions over extended periods.

These coolers use materials that absorb and release thermal energy during the process of melting and solidifying at specific temperatures.

They can be integrated into building materials like walls or ceilings, or used in standalone cooling systems.

This technology is especially advantageous in balancing energy loads, reducing peak time energy demands, and enhancing overall energy efficiency in cooling systems.

Quantum cooling is a technique that's still in its research phase, but it's already showing great promise in advanced computing systems like quantum computers.

It works by manipulating quantum states to dissipate heat, allowing for cooling efficiencies beyond traditional methods. This means we can achieve ultra-low temperatures that are essential for optimal operation.

Quantum cooling has the potential to enhance the performance of electronic devices and enable new scientific experiments in physics and materials science.

This technology represents a significant leap forward in controlling and managing temperatures at the quantum level, opening up new possibilities in high-tech fields.

Readers also liked: New Ac Unit Not Cooling

Electrocaloric refrigeration is an innovative cooling technology that uses the electrocaloric effect, where certain materials change temperature in response to an applied electric field.

This technology is gaining attention for its potential to create highly efficient and environmentally friendly cooling systems. It's particularly promising for small-scale applications like electronics cooling, offering a compact and noiseless solution.

Unlike traditional cooling methods, electrocaloric refrigeration does not rely on harmful refrigerants. It's also more energy-efficient, making it a great option for those looking to reduce their carbon footprint.

This technology holds great promise for significant advancements in the way we approach refrigeration in various sectors. The development of electrocaloric refrigeration could lead to a revolution in cooling systems, making them more efficient, environmentally friendly, and cost-effective.

DeltaFlow leverages Aligned's standard closed loop system, using no outside air or water. This design ensures efficiency in data center cooling.

Liquid cooling can help organizations overcome high performance computing-related infrastructure challenges. It's a game-changer for data centers struggling to keep up with increasing heat loads.

Vertiv offers solutions for hybrid air/liquid-cooling systems and fully liquid-cooled data centers. Their portfolio includes coolant distribution units, chillers, and heat rejection systems.

To get started with liquid cooling, consider the following options:

The key to success lies in finding the right balance between air and liquid cooling. With the right approach, you can achieve optimal performance and efficiency in your data center.

The Vesma team is making big strides toward shaking up the air conditioning market.

Their innovative cooling technology uses water instead of refrigerant chemicals and consumes up to 75% less electricity than standard vapor compression units.

cSNAP, the biologically inspired, indirect evaporative cooling technology developed by the team, was tested in real-world conditions for the first time at Harvard's HouseZero in August 2022.

It achieved a coefficient of performance (COP) above 8 on-site and made the room where it was installed noticeably cooler.

The system's ceramic material base and low water use make it appealing for low-resource and desert settings.

A more recent iteration of the system, called Vesma, has the potential to reach a COP of 10, whereas most standard A/C systems achieve a maximum of 3.5.

Sustainable cooling is a game-changer for data centers, and it's not just about reducing environmental impact. DeltaFlow, for instance, uses a closed-loop system that doesn't require outside air or water, making it a highly efficient choice.

In fact, Delta³ delivers industry-leading PUEs, which means it uses less energy and reduces environmental impact. This is thanks to its closed-loop system that eliminates water usage.

Liquid cooling is a more efficient option than air cooling, especially in high-density data centers. By introducing liquid cooling, you can reduce total data center power by up to 10.2% and improve Total Usage Effectiveness (TUE) by more than 15%.

To maximize efficiency, it's essential to consider the percent of the IT load cooled by liquid. Direct-to-chip cooling can effectively cool around 75% of the load, which is a significant improvement over air cooling.

Here's a breakdown of the benefits of liquid cooling:

Hot water cooling, in particular, is a great option to consider. By raising secondary inlet temperatures to 45 C (113 F), you can increase efficiency and create opportunities for waste heat reuse.

Data center cooling is a critical aspect of maintaining the health and efficiency of data centers. Liquid cooling can improve the energy efficiency of IT and facility systems compared to air cooling, resulting in a 10.2% reduction in total data center power and a more than 15% improvement in Total Usage Effectiveness (TUE).

Liquid cooling affects both the numerator (total data center power) and the denominator (IT equipment power) in the Power Usage Effectiveness (PUE) calculation, making it ineffective for comparing the efficiency of liquid and air-cooling systems. This is why alternative metrics like TUE are more helpful in guiding design decisions related to liquid cooling.

A key benefit of liquid cooling is its ability to enable higher chilled water, supply air, and secondary inlet temperatures that maximize the efficiency of facility infrastructure. For example, raising secondary inlet temperatures to 45 C (113 F) can contribute to improved efficiency while also increasing opportunities for waste heat reuse.

A different take: Cooling Center

In high-density data centers, liquid cooling can be particularly effective in reducing energy consumption. To maximize efficiency, it's essential to consider the percent of the IT load cooled by liquid, with direct-to-chip cooling capable of effectively cooling approximately 75% of the load.

To implement liquid cooling, data center operators can consider a range of solutions, including:

By understanding the impact of liquid cooling on efficiency, data center designers and operators can optimize the deployment of liquid cooling for energy savings and efficiency.

Data center operators have three main paths to consider when it comes to liquid cooling: developing liquid-only data centers, future-proofing air-cooled facilities, or integrating liquid cooling into current air-cooled facilities. Most will likely choose the latter path to gain capacity that meets near-term business needs and provides rapid return on investment.

Liquid cooling can be complicated to install, so data center teams will want to work with a partner to consider key issues like plumbing requirements, cooling distribution, and risk mitigation strategies.

For another approach, see: Water Cooled Air Conditioning Units

Your options for liquid cooling include rear-door heat exchangers, direct-to-chip liquid cooling, and immersion cooling. Rear-door heat exchangers replace the rear door of the IT equipment rack with a liquid heat exchanger, while direct-to-chip liquid cooling uses cold plates to draw off heat from the board's heat-generating components.

Direct-to-chip liquid cooling can remove about 70-75% of the heat generated by the equipment in the rack, leaving 25-30% that must be removed by air-cooling systems. Immersion cooling submerges servers and other components in a thermally conductive dielectric liquid or fluid, eliminating the need for air cooling.

The most commonly used liquid cooling methods being deployed today are rear-door heat exchangers and direct-to-chip cold plates. Immersion cooling is also making headway, but it requires careful planning and engineering to ensure successful deployment.

Here are some key considerations for balancing capacity when introducing liquid cooling into an air-cooled data center:

By considering these factors and working with a partner, data center teams can ensure a successful and minimally disruptive deployment of liquid cooling into their air-cooled data centers.

A government agency with thousands of engineers and scientists used high-density supercomputing to predict and respond to climate change and other environmental challenges. They selected Aligned as their data center provider.

One of the agency's main challenges was finding a provider that could understand their needs and work with different technology partners to provide an optimal solution. This solution had to address cooling and scalability challenges.

The agency previously used rear-door heat exchangers to cool their environment, but Aligned integrated a different cooling technology to accommodate the high temperatures associated with supercomputing. This technology was Aligned's patented and award-winning Delta³ cooling technology.

Aligned's cooling systems are designed to be easily, efficiently, and cost-effectively configured for supercomputing. This flexibility allowed the agency to scale their solution quickly and seamlessly.

By using Aligned's cooling technology, the agency saved millions of dollars in upfront capital expenditures. They also gained the ability to scale their operations quickly and cost-effectively.

You might enjoy: Central Heat Pump Cost Heating and Cooling

The coolant distribution unit (CDU) is a key component in a liquid cooling system, providing temperature and flow rate control, as well as liquid hygiene through filtration. It's often used in conjunction with a liquid-to-liquid heat exchanger to capture heat from the racks and reject it through the chilled water system.

A CDU can be positioned on the data center's perimeter or within the row, depending on the design. In smaller projects, a CDU with a liquid-to-air heat exchanger can simplify deployment, assuming the air-cooling system can handle the heat rejected from the CDU.

Vertiv's Liebert XDU is an example of a CDU that functions as a liquid-to-air heat exchanger for cooling chips.

Cooling systems are made up of various components, each playing a crucial role in keeping our devices and buildings at a comfortable temperature. One of the subcategories of cooling systems is computer hardware cooling, which includes components like heat sinks and fans.

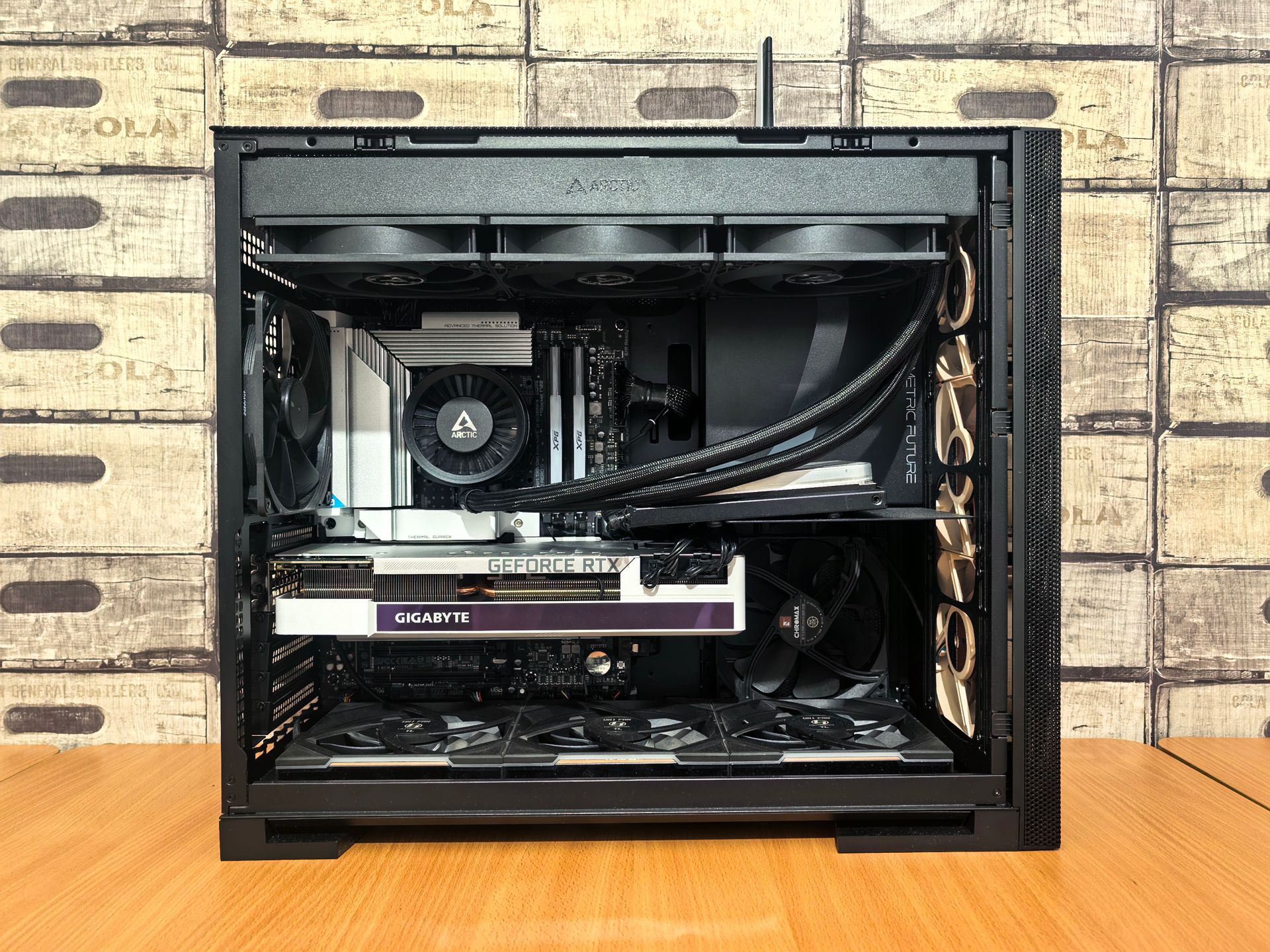

Computer hardware cooling is a vital aspect of any computing system, and it's interesting to note that it has a dedicated category with 47 pages of information. Another subcategory is coolers, which have 1 category and 4 pages of information.

In addition to these subcategories, there are also specialized cooling systems like cryogenics, which involves the use of extremely low temperatures to cool materials. Cryonics, on the other hand, focuses on preserving human bodies at very low temperatures. Both of these subcategories have a significant amount of information, with cryogenics having 6 categories and 67 pages of information.

Here are some of the subcategories of cooling systems:

In a liquid cooling system, you need to establish a secondary cooling loop in the facility that allows precise control of the liquid being distributed to the rack.

The key component in this loop is the coolant distribution unit (CDU), which provides temperature and flow rate control and the ability to maintain liquid hygiene by using filtration to capture debris.

For smaller projects, a CDU with a liquid-to-air heat exchanger can simplify deployment, assuming the air-cooling system can handle the heat rejected from the CDU.

Most CDUs use a liquid-to-liquid heat exchanger to capture the heat returned from the racks and reject it through the chilled water system.

CDUs can be positioned on the data center's perimeter, but most units are designed to fit within the row so they can be located in proximity to the racks they support.

The Vertiv Liebert XDU Coolant Distribution Unit functions as a liquid-to-air heat exchanger for cooling chips.

Electrocaloric refrigeration is an innovative cooling technology that uses the electrocaloric effect, where certain materials change temperature in response to an applied electric field.

This technology is gaining attention for its potential to create highly efficient and environmentally friendly cooling systems. Unlike traditional cooling methods, electrocaloric refrigeration does not rely on harmful refrigerants and can be more energy-efficient.

Explore further: A Mechanical Refrigeration System Cools a Room by

Electrocaloric refrigeration is particularly promising for small-scale applications like electronics cooling, offering a compact and noiseless solution. It's a game-changer for industries that require precise temperature control without the hassle of traditional cooling systems.

The development of electrocaloric refrigeration could lead to significant advancements in the way we approach refrigeration in various sectors.
